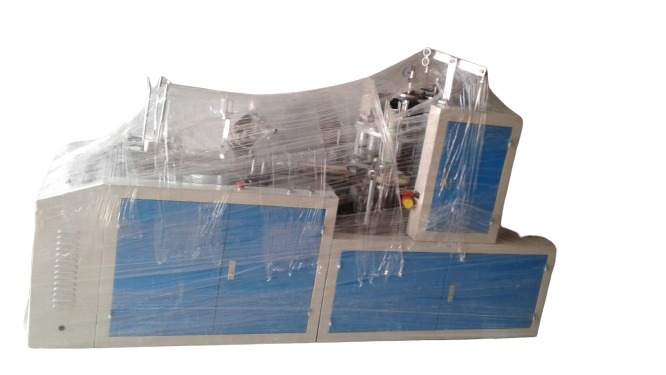

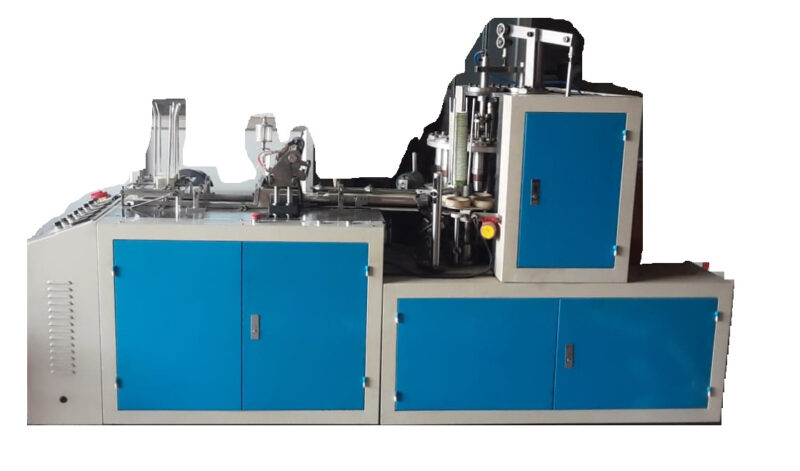

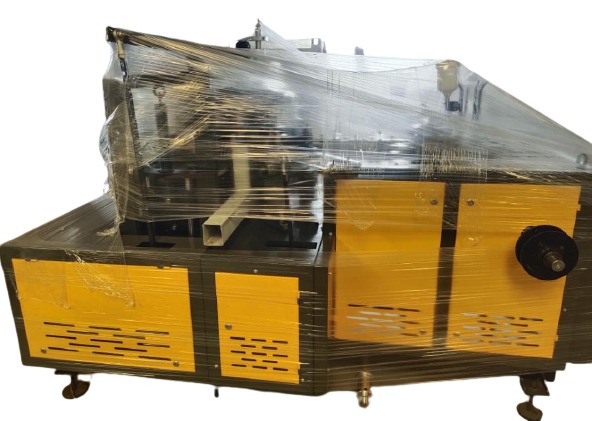

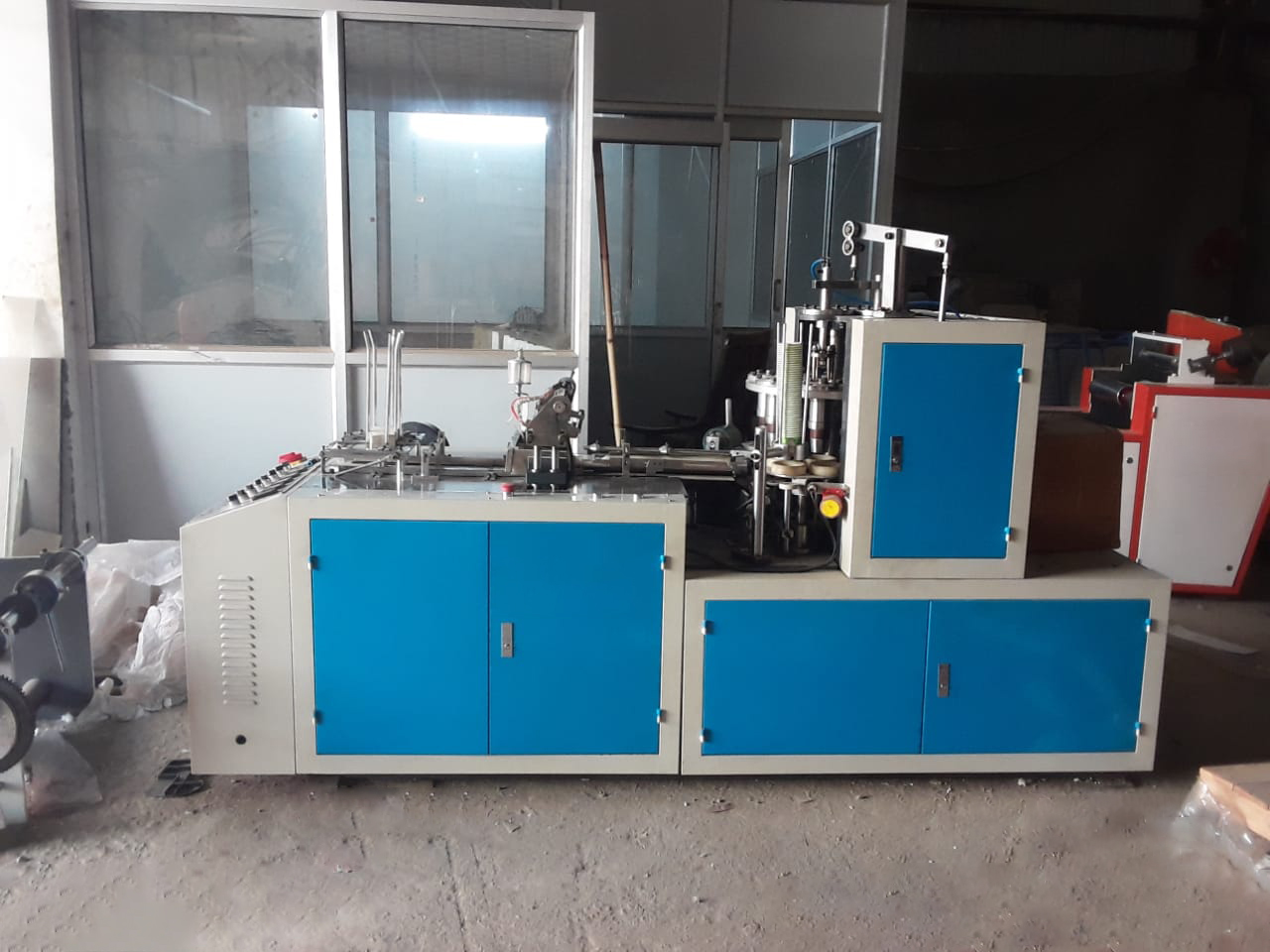

Paper Cup Machine
Paper Cup Machine

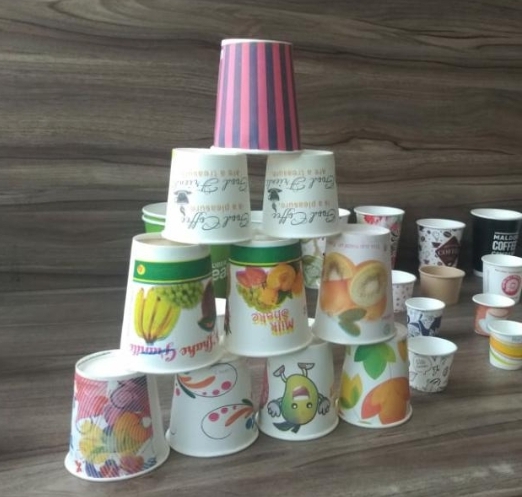

This machine runs the whole procedure of paper feeding, cup fan wall sealing, bottom punching, heating, rolling, rimming and rounding. It has an Auto Re-Cycling Oiling System. It is an ideal equipment for producing drinking cups, market cups, coffee cups, advertising cups, etc. The machine can produce single PE coated paper cups.
Technical Specifications:

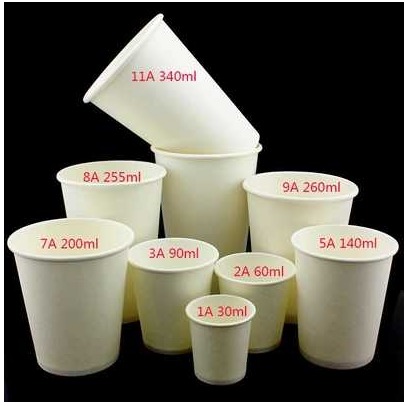

Cup Size: 35 – 250 ml
Suitable Paper Material: 150 – 380 g/m2
(Single PE coated paper)
Capacity: 55 – 70 pcs / min
Power Source: 220 V – 380 V ; 50 Hz
Total Power: 3.5 kw
Weight: 1600 kg
Package Size: 2580 x 1220 x 1600 mm
