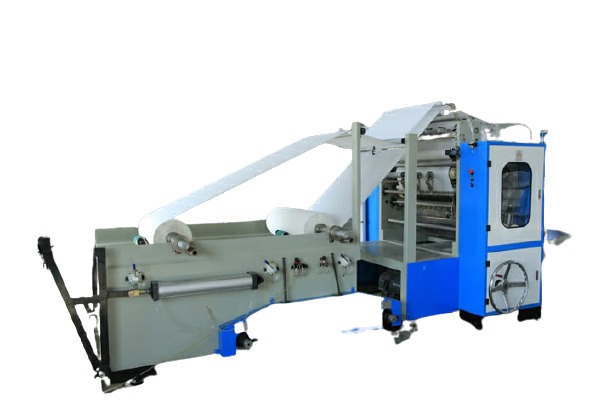

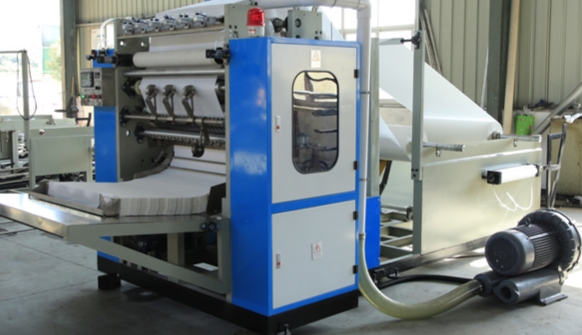

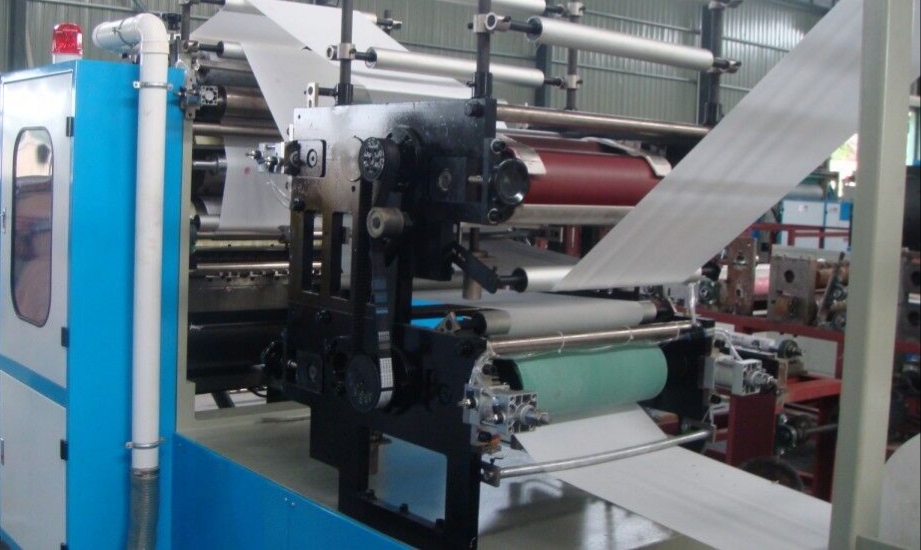

Facial Tissue Making Machine

Facial Tissue Making Machine

Technical Specification

• Production Speed: 1200 pulls / min
• Finished Product Size: 210 x (120 – 210) + 2 mm (Adjustable)
• Maximum Cutting Base Paper Size: 840 mm
• Equipment Electric Power: 3 kw
• Vacuum Blower: 5.5 kw (380 V ; 50 Hz)
• Machine Dimension: 5870 x 2800 x 2210 mm
• Equipment Weight: 5.0t
• PLC Computer Programming
• Color Printing (As Per Requirement)
• Design Speed: 80 packs / min
• Napkin Length: 120 mm – 210 mm
• Napkin Width: 90 mm – 120 mm
• Napkin Height: 40 mm – 100 mm
• Film Thickness: 0.04 mm – 0.05 mm
• Max Film Diameter: 400 mm
• Air Pressure: >5 mpa
• Total Drive Power: 7.8 kw ; 380 V / 50 Hz
• Dimensions: 4600 x 3600 x 1770
• Weight: 3500 kg
